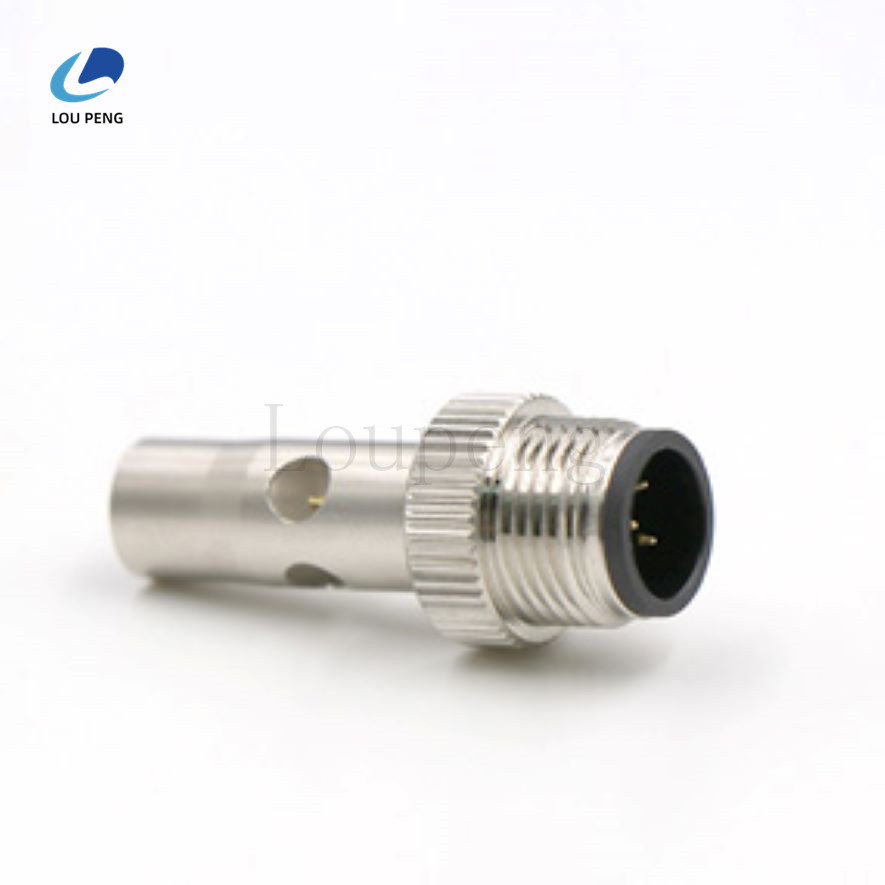

M12 Male Plug 5 Pos A Code Shielded Molded Connector

The M12 Male Plug 5 Position A Code Shielded Molded Connector is a rugged and reliable electrical connector designed for industrial applications. It features a 5-position configuration with A-code to provide a secure connection for power and signal transmission. The shielded design enhances protection against electromagnetic interference, ensuring optimal performance in challenging environments.
ꄴPrevious： M12 Female 5 Pos A Code Plug Shielded Molded Circular Connector
ꄲNext： M12 Female Metal Shell Non-shield Molded Cable Connector

M12 electrical molded cable connectors, which are welded and injection-molded, come in both shielded and unshielded versions. They offer reliable connections in harsh conditions and various climatic environments.



Shield and Non-shield

Shielded connectors have a metal shield that protects against electromagnetic and radio frequency interference, so they are effective in environments with high levels of electromagnetic or radio frequency interference. In contrast, unshielded connectors, lacking such a shield, are not protected against such interference. However, in environments with less interference, such as offices or homes, they typically deliver adequate performance and are more affordable.



Product Type

Connector Type

Plug

 Number of Positions

5Pin
Orientation

Straight

 Mounting Type

Cable Mount
key type

A code

 Shielding

Shielded
Shell Size

Contact Type

Contact Type

Contact Material

Copper Alloy
Contact Finish

Gold Plating

Environmental Characteristics

Operating Temperature

-20°C ~ + 85°C

 Protection Grade

IP67

Electrical Characteristics

Rated Current

4A

 Rated Voltage

250V
Insulation Resistance

≥100 MΩ

 Contacts resistance

≤5MΩ

Mechanical Characteristics

Mechanical Operation

>500 Mating Cycles
